Cat Dog Pet Feed Pellet Machine Stainless Steel Ornamental Fish Feed Pellet Extruder

Cat Dog Pet Feed Pellet Machine Stainless Steel Ornamental Fish Feed Pellet Extruder

Cat Dog Pet Feed Pellet Machine 2000kg/h

Feed Pellet Machine Stainless Steel 300kg/h

Ornamental Fish Feed Pellet Extruder 2000kg/h

Herkunftsort:

Henan, China

Markenname:

Zhongdebao

Zertifizierung:

CE, SGS, BV

Modellnummer:

300-2000 kg/hour

Treten Sie mit uns in Verbindung
Fordern Sie ein Zitat
Produkt-Details
Produkt-Name:
Sich hin- und herbewegende Fische ziehen Fertigungsstraße ein
Kapazität:
300~2000kg/h
Maß:
Differernt-Modell With Different Size
Garantie:
12 Monate
Zertifizierung:
SGS,CE
Spannung:
380 V, Kundenanforderung
Art:
Produktionslinie für Fischfutter-Extruder-Verarbeitungsmaschinen
Anwendung:
Fisch, Geflügel und Wasserfutter, schwimmende Fischfutterpelletmaschine zum Neupreis, Vieh, Hund
Zahlungs-u. Verschiffen-Ausdrücke
Min Bestellmenge
1
Preis
Negociable
Verpackung Informationen
bewaldetes Paket
Lieferzeit
10-20 Tage
Zahlungsbedingungen
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Versorgungsmaterial-Fähigkeit
200unit/month
Produkt-Beschreibung
Cat Dog Pet Feed Pellet Machine Stainless Steel Screw Feed Extruder For Feed Floting Ornamental Fish Feed Pellet Making

Product Description:



  • Feed puffing machine is a kind of puffing machine, mainly used for food puffing, livestock and poultry feed or puffing a single raw material.
  •
  • working principle
  • Screw: It is the main part of the extruder. The parameters indicating the screw structure include diameter, pitch, root diameter, helix angle and blade cross-section structure. The aspect ratio of the extrusion parts and the gap between the screw and the inner wall of the puffing cavity also have a great influence on the performance of the puffing machine.
  • Discharge die: It is the final pass for the product to pass through the extruder. It has a great influence on the shape, texture, density, appearance, characteristics of the product and the production capacity of the extruder. The bearing box part is mainly composed of a bearing box body, a main shaft, a bearing, a shaft sleeve, left and right end covers, a sealing ring, and a round nut. The oil filtration cooling system is mainly composed of oil pump, cooler, oil filter, valves, connecting pipe fittings and so on.





Features:

  • 1. The main engine adopts frequency converter to realize stepless speed regulation. The built-in screw and screw sleeve of the model are lengthened. The material rotary cutting time is long, the temperature can be adjusted, and the output torque can be adjusted to make the material have a high degree of expansion and a smooth surface.
    2. Adjust different torques of the machine and different materials to make different feeds. This model can be used to make: suspended aquatic feed pellets, sinking fish, shrimp and crab feed pellets, pet feed pellets, fishing feed pellets, etc.
    3. The international advanced granulation structure adopts the form of soft knife bonding to realize stepless speed change, and can cut the output material into desired length products at will, and it is not easy to produce burrs.
    4. The design is novel, unique, simple in structure, easy to assemble and disassemble, and easy to operate.
    5. The screw sleeve and screw are made of special wear-resistant and high-temperature-resistant alloy steel materials and are heat-treated, which has the advantages of wear resistance and long life.


Technical Parameters:

Model Capacity Screw Dia Power
S-40 30 kg/h 40mm 4kw
S-65 80 kg/h 60mm 15kw
S-75 120 kg/h 70mm 18.5kw


Applications:

  • The feed extruder is mainly used for the production of pelleted feed for special breeding such as puffed fish, shrimp, pet food, etc.
  •

Packing and Shipping:

Packaging and Shipping

The Floating Fish Feed Production Line is packed into wooden cases and shipped by sea. The shipment will be inspected before loading and unloading to ensure that the products are in good condition.



Details:

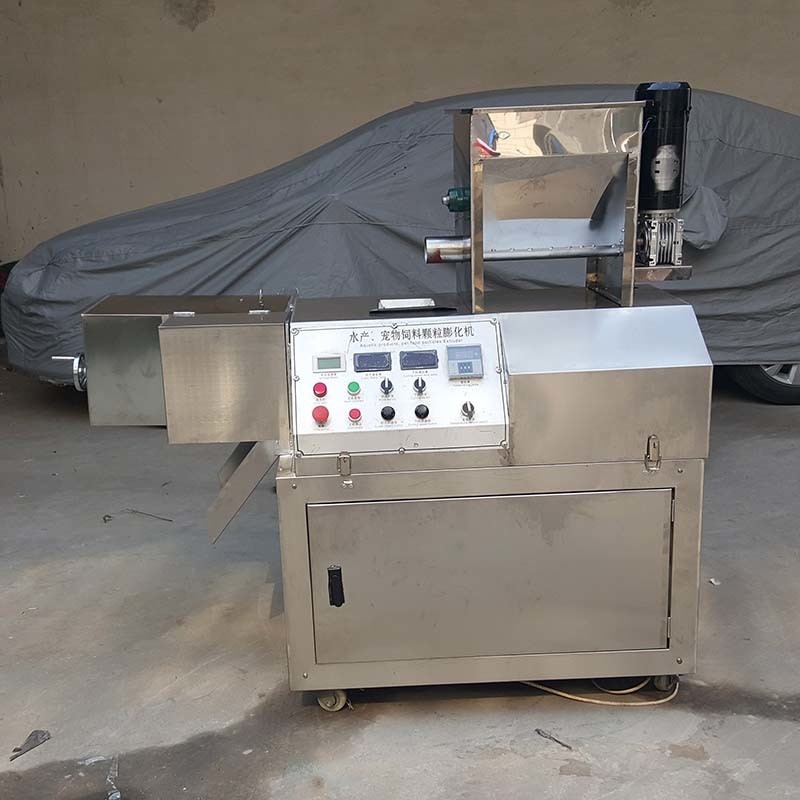

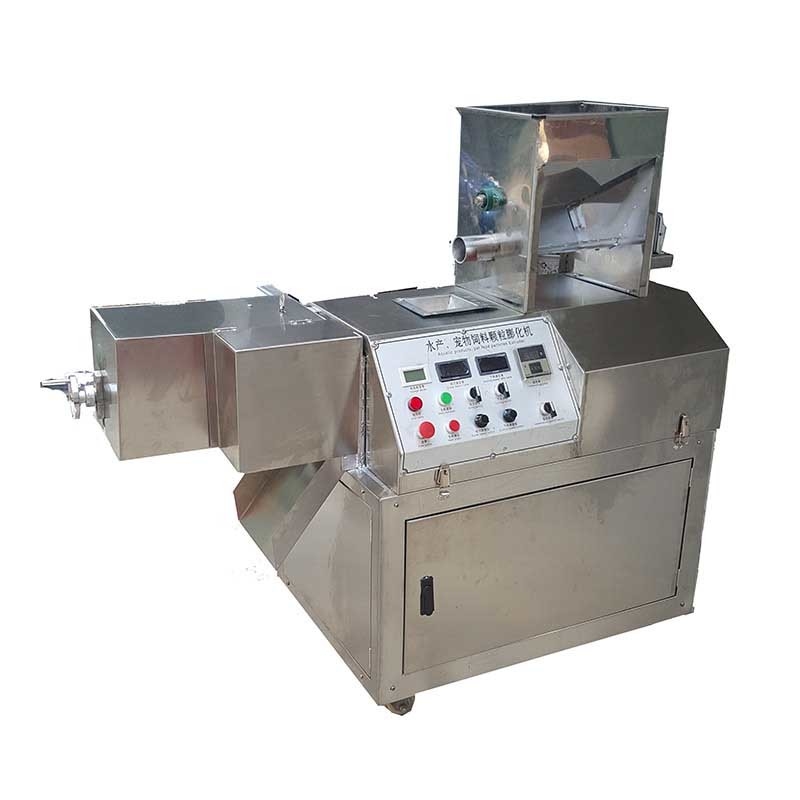

Cat Dog Pet Feed Pellet Machine Stainless Steel Ornamental Fish Feed Pellet Extruder 0
Cat Dog Pet Feed Pellet Machine Stainless Steel Ornamental Fish Feed Pellet Extruder 1
Cat Dog Pet Feed Pellet Machine Stainless Steel Ornamental Fish Feed Pellet Extruder 2
Cat Dog Pet Feed Pellet Machine Stainless Steel Ornamental Fish Feed Pellet Extruder 3
