Hot sale hydraulic diesel engine chipper wood diesel wood log branch shredder machine

Hot sale hydraulic diesel engine chipper wood diesel wood log branch shredder machine

Dieselmotor-Holzspalter

Hydraulischer hölzerner Abklopfhammer

Holzsplittermaschinen

Herkunftsort:

China

Markenname:

Zhongdebao

Zertifizierung:

CE BV

Modellnummer:

EW-6130

Treten Sie mit uns in Verbindung
Fordern Sie ein Zitat
Produkt-Details
Garantie von Kernkomponenten:
1-jährig
Kern-Komponenten:
PLC, Pumpe
Garantie:
2 Jahre
Schlüsselverkaufsstellen:
Konkurrenzfähiger Preis
Anwendbare Industrien:
Produktionsanlage, Bauernhöfe, Hauptgebrauch, anderer
Gewicht (Kilogramm):
3600
Bedingung:
Neu
Produktbezeichnung:
großer hölzerner Abklopfhammer 24 Zoll
Kapazität:
4000-5000kg/h
Max. Klotzdurchmesser:
30cm
Eigenschaft:
Hölzerne Zerkleinerungsmaschinenmaschine des Treibstoffs
Chipgröße:
1-3cm
Vorteil:
Hohes Efficieny
Verwendung:
Zerquetschen Sie Biomasseabfallholz
Kundendienst:
24 Stunden on-line
Anwendung:
Zerstampfungs-Holz zeichnet die Herstellung des Sägemehls auf
Farbe:
Gelbe Farbe oder als Ihr besonders angefertigt
Zahlungs-u. Verschiffen-Ausdrücke
Min Bestellmenge
1 Satz
Preis
price negotiable
Verpackung Informationen
mit Holzetuipaket oder direkt geladen im Behälter
Lieferzeit
5-8 Werktage
Zahlungsbedingungen
L/C, D/A, D/P, T/T, Western Union
Versorgungsmaterial-Fähigkeit
999 Sätze pro Monat
Produkt-Beschreibung

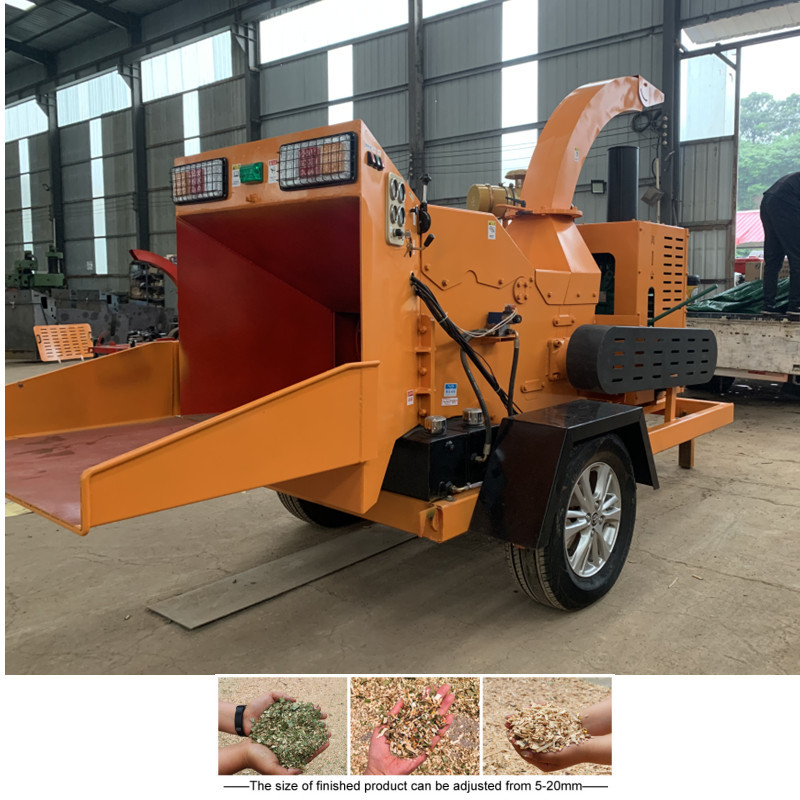

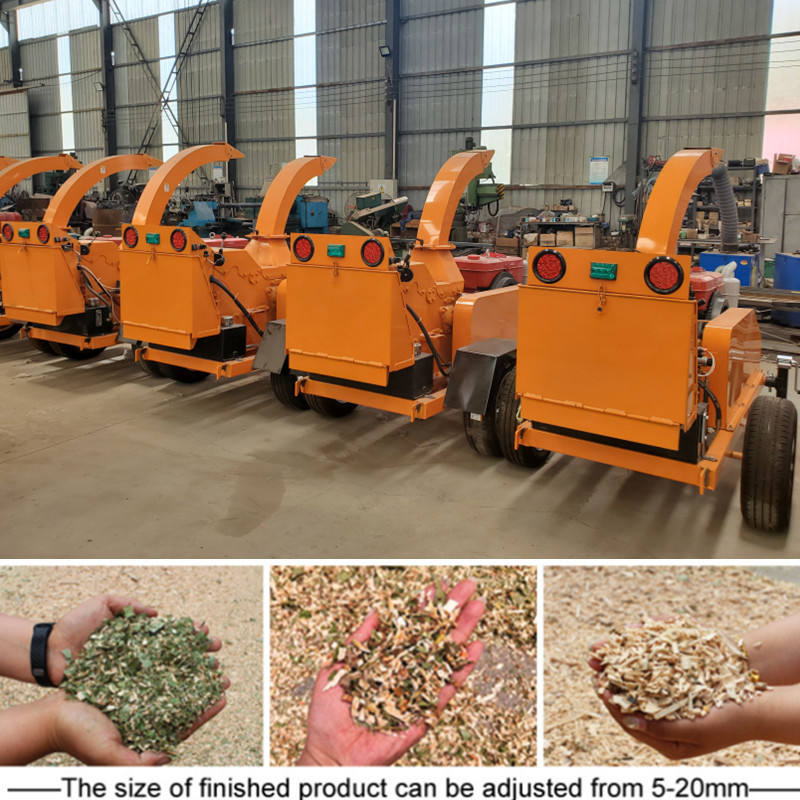

Hot sale hydraulic diesel engine chipper wood diesel wood log branch shredder machine



The newly developed and produced garden wood branch shredder is suitable for gardens, orchards, forestry, highway tree maintenance, parks, golf courses and other departments.

The equipment is simple to operate, one-time molding, after crushing, it can be used as mulch, garden bed base, organic fertilizer, edible fungus, biomass power generation, and can also be used for the production of high density board, particle board, paper industry, etc.

After crushing, it can be directly sprayed into the transportation vehicle, and the volume can be reduced by 80%-90% after crushing, which not only reduces the transportation cost, but also saves manpower, material resources, energy saving and emission reduction. The garden-specific branch crusher produced by our company can be driven by a diesel engine, and is equipped with tires, platforms, and traction devices. It is flexible and can crush branches anytime and anywhere. It is very convenient for field operations or roadside work.



The hydraulic forced feeding system is conducive to reducing the volume of fluffy branches and feeding quickly.

The front pressing roller can prevent the material from flowing back and ensure the safety of use. The drum cutter rotor structure optimizes the cutting effect

and can easily crush 15 cm logs to obtain higher output. The finished product is more suitable for making organic fertilizer and ground cover.



Production advantages :



1. 360° any place discharge material. Jet distance up to 2.5M can be directlyUnloading and loading .

2. Aluminum alloy wheels, car tires, 2 inch traction loading more than 5000kgs.

3. Well-known Weifang Diesel Engine in China. Single cylinder 35 hp or 54 hp four-cylinder as option.

4. The hydraulic feeding speed is uniform and the roller diameter is large.

5. The intelligent operation panel (optional) displays the operating conditions of the whole machine (oil volume, water temperature, working hours, etc.) in time to find abnormalities and reduce maintenance.

6. Equipped with an intelligent hydraulic forced feeding system, the 1-10 speed adjustment gear can adjust the speed freely to avoid material jams.

Hot sale hydraulic diesel engine chipper wood diesel wood log branch shredder machine 0





Model
600
800
1000
1200
1500
Feeding Size (mm)
150
200
250
300
350
Discharge Size(mm)
5-50
Diesel Engine Power
35HP
65HP
102HP
4-cylinder
200HP
6-cylinder
320HP
6-cylinder
Rotor Diameter(mm)
300*320
400*320
530*500
630*600
850*600
Minimum Inlet Size
(mm)
300*200
350*250
450*350
470*400
600*500
Feeding Method
Horizontal hydraulic feed
NO. Of Blade
4
4
4 or 6
6
8 or 10
NO. of Fixed Blades
1
1
1
1
2
Speed(r/min)
2200
2200
2200
2200
2000
Capacity (kg/h)
800-1000
1500-2000
4000-5000
5000-6500
6000-8000
Fuel Tank Volume
25L
25L
80L
80L
120L
Hydraulic Tank Volume
20L
20L
40L
40L
80L
Start Method
Electric start
Weight(kg)
1650
1950
3520
4150
4800



Hot sale hydraulic diesel engine chipper wood diesel wood log branch shredder machine 1

Hot sale hydraulic diesel engine chipper wood diesel wood log branch shredder machine 2 Hot sale hydraulic diesel engine chipper wood diesel wood log branch shredder machine 3
Hot sale hydraulic diesel engine chipper wood diesel wood log branch shredder machine 4 Hot sale hydraulic diesel engine chipper wood diesel wood log branch shredder machine 5
Hot sale hydraulic diesel engine chipper wood diesel wood log branch shredder machine 6 Hot sale hydraulic diesel engine chipper wood diesel wood log branch shredder machine 7

Hot sale hydraulic diesel engine chipper wood diesel wood log branch shredder machine 8

Hot sale hydraulic diesel engine chipper wood diesel wood log branch shredder machine 9

Hot sale hydraulic diesel engine chipper wood diesel wood log branch shredder machine 10
