High Efficiency Feed Pellet Production Line 256kw Animal Feed Pellet Machines

High Efficiency Feed Pellet Production Line 256kw Animal Feed Pellet Machines

High Efficiency Feed Pellet Production Line

Feed Pellet Production Line 256kw

256kw Animal Feed Pellet Machines

Herkunftsort:

China

Markenname:

Zhongdebao

Zertifizierung:

CE BV

Modellnummer:

EWPL-1TPH

Treten Sie mit uns in Verbindung
Fordern Sie ein Zitat
Produkt-Details
Anwendung:
Tierfutter-Kugellinie Maschinen des Viehschafgrases
Kundendienst erbracht:
Ingenieure verfügbar für Service-Maschinerie übersee, Feldinstallation, beauftragend und bilden aus,
Stromspannung:
Phase 380V/50HZ, 380v, 50hz, 380V/50HZ/dreiphasig, 220V/50HZ/Single oder Änderung als Rquired
Energie (W):
45KW, 256kw, 195kw, 80KW, 22/30/55/75/90kw
Garantie:
1-jährig, ein Jahr, 12 MONATE
Gewicht:
500kg, 6000kg, 1200kg, 2-10TON, 2000
Maß (L*W*H):
30000*5000*3500mm, 3.2*1.1*2m, 21*2*3m, 3.5x1.05x1.96m, gemäß der Kapazität
Bedingung:
neu
Kapazität:
100kg/h 200kg/h 500kg/h 1000kg/h zu 20tons /h
Material:
Legierter Stahl des Kohlenstoffstahls
Motor:
Simens, chinesischer Motor oder Simense
Produktname:
hölzerne Kugelfertigungsstraße der Biomasse
Farbe:
blaues weißes Grünes jede mögliche Farbe kann besonders angefertigt werden
Art:
hölzerne Kugel der Biomasse, Linie produzierend
Rohstoff:
Holzspäne Eukalyptuskiefernbirkenpappel Reishülsen, Erdnusshülsen, Melonensamenhülsen, Bambusschnitz
Hauptmotor:
22kw 30kw 37kw 55kw
Ertrag:
300kg/h 500kg/h 800kg/h 1000kg/h 1.5ton/h 1.8-2tons/h 2.5-3tons/h
Jahr:
2023
Zahlungs-u. Verschiffen-Ausdrücke
Min Bestellmenge
1
Preis
price negotiable
Verpackung Informationen
direkt geladen im Behälter oder durch Holzetui verpackt
Lieferzeit
5-8 Werktage
Zahlungsbedingungen
L/C, T/T, Western Union
Versorgungsmaterial-Fähigkeit
100 Sätze pro Woche
VERWANDTE PRODUKTE
Treten Sie mit uns in Verbindung
86-371-86546711
Kontakt jetzt
Produkt-Beschreibung

1-20TPH chicken poultry livestock feed pellet production line

Production application :

Type : Animal feed pellet production line

Capacity : 1-20TPH

Pellet size : 1.5-12mm ( 1.5-6mm generally for animal feed )

Application : Can be used for poultry , livestock , ruminants and aquatic pellet feed production .

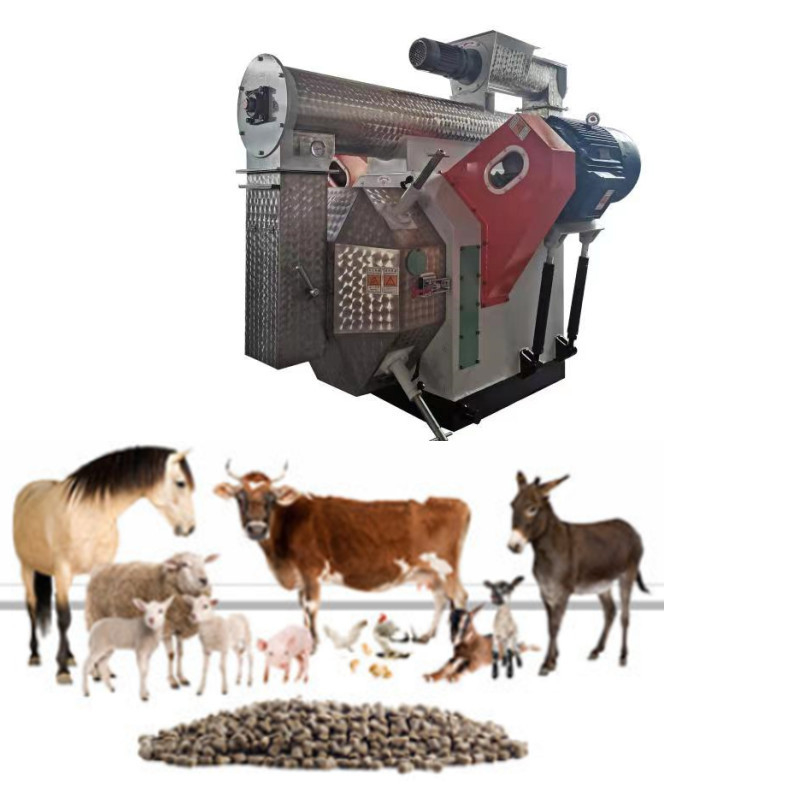

High Efficiency Feed Pellet Production Line 256kw Animal Feed Pellet Machines 0



                                                         HKJ Series Ring die pellet machine models :
Model
Main Power

Feeder Power

Conditioner Power
Dia.of Ring Die
Pellet Size
Capacity
HKJ-250
22KW
0.55KW
1.5KW
250mm
φ1.5-12.0mm
1-2T/H
HKJ-320
37KW
1.5KW
2.2KW
320mm
φ1.5-12.0mm
3-5T/H
HKJ-350
55KW
1.5KW
3.0KW
350mm
φ1.5-12.0mm
5-8T/H
HKJ-420
110KW
2.2KW
7.5KW
420mm
φ1.5-12.0mm
8-12T/H
HKJ-508
132/160KW
2.2KW
11KW
520mm
φ1.5-12.0mm
12-18T/H

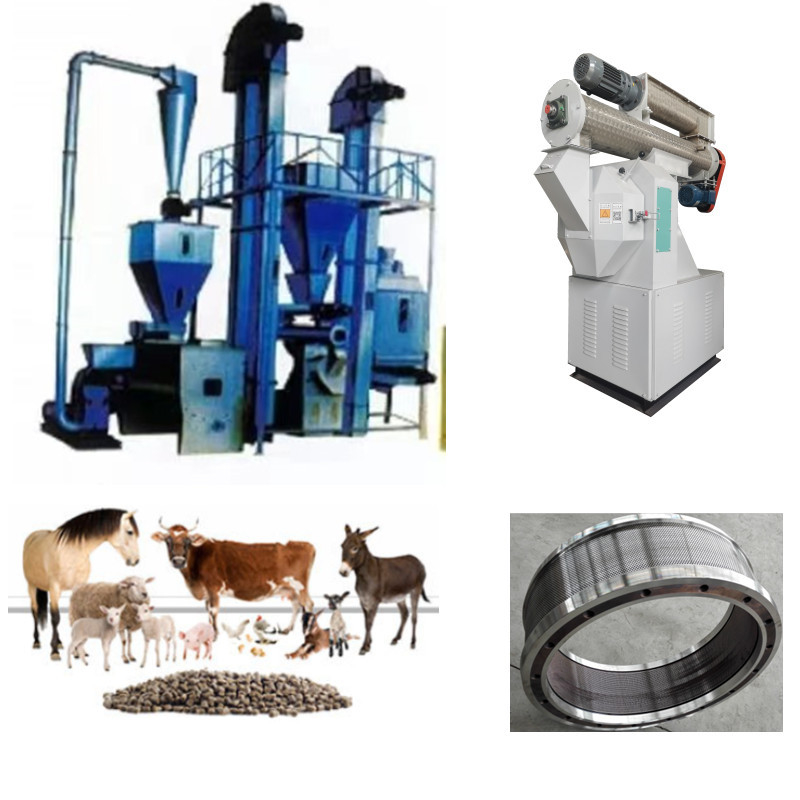

High Efficiency Feed Pellet Production Line 256kw Animal Feed Pellet Machines 1

This one is double conditioners ring die pellet machine

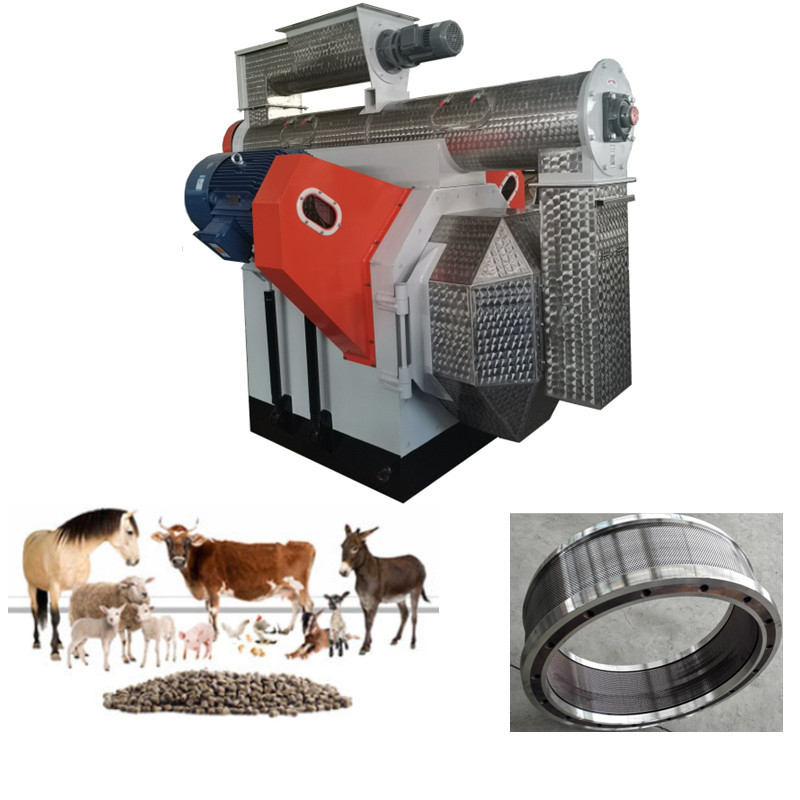

High Efficiency Feed Pellet Production Line 256kw Animal Feed Pellet Machines 2

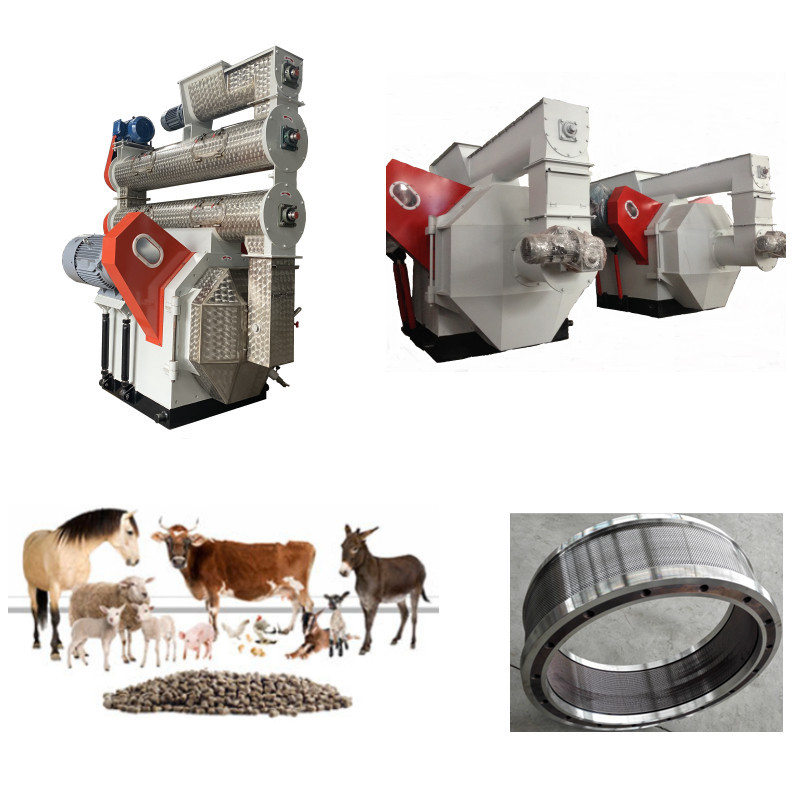

High Efficiency Feed Pellet Production Line 256kw Animal Feed Pellet Machines 3



This above horizontal HKJ-250 chicken feed pellets line exported to Africa .



Process :
Main machines :
Function :
Crushing section
Hammer mill
Crush raw materials into powders
   Batching and Mixing section         Mixer   batching manual or automatic then mixing the crushed powder evenly for later making the animal feed pellets more comprehensive and nutritious.
Pelleting section
horizontal ring die pellet machine
Press mixed raw materials into pellets
Cooling section
counterflow cooling machine
Reduce temperature to room termperature and reduce moisture of pellets for later easily storage
Finished pellets crumbling system     roller crumbling machine    for crumbling finished pellets to very smaller particles for baby chick feed
Packing section
Automatic packing machine
Weigh and pack the final pellets into bags and sewing the bags
Electric control
Electric control cabinet
Control the complete line

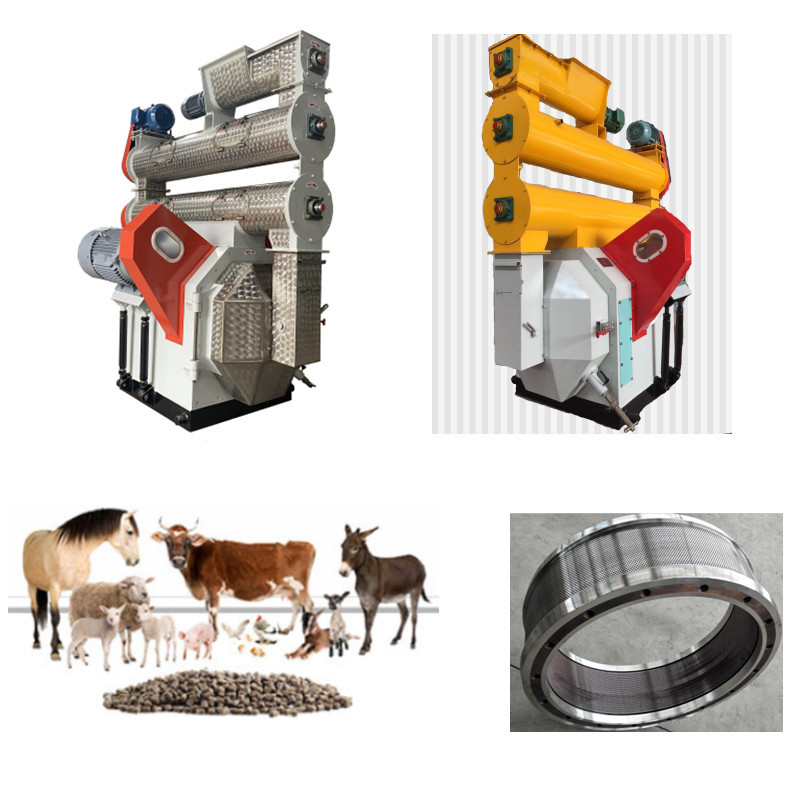

High Efficiency Feed Pellet Production Line 256kw Animal Feed Pellet Machines 4

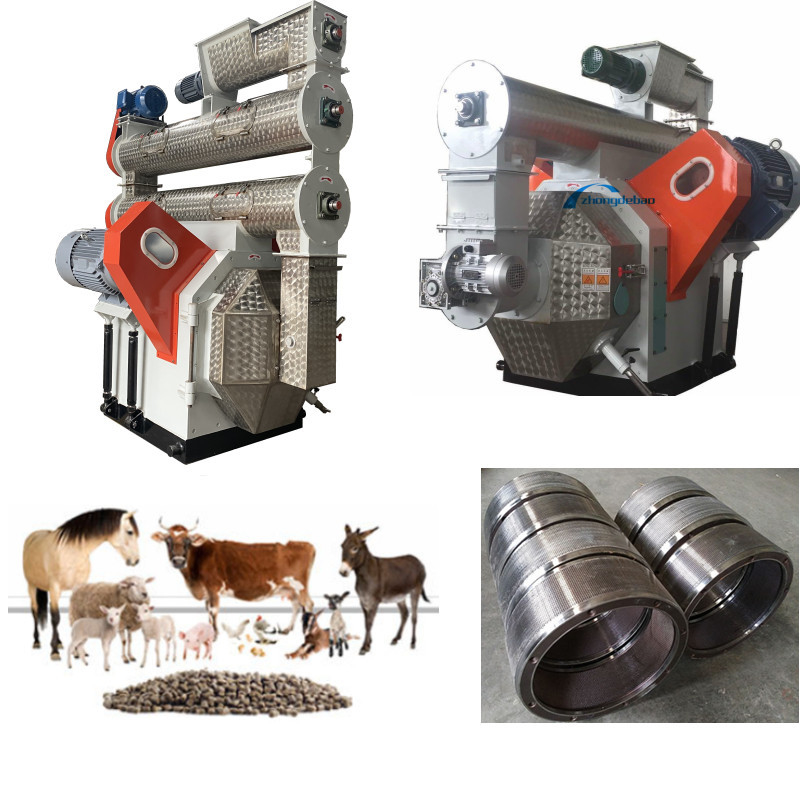

High Efficiency Feed Pellet Production Line 256kw Animal Feed Pellet Machines 5

High Efficiency Feed Pellet Production Line 256kw Animal Feed Pellet Machines 6

High Efficiency Feed Pellet Production Line 256kw Animal Feed Pellet Machines 7High Efficiency Feed Pellet Production Line 256kw Animal Feed Pellet Machines 8



High Efficiency Feed Pellet Production Line 256kw Animal Feed Pellet Machines 9
