10TPH Biomass Pellet Production Line Eucalyptus Pine Birch Wood Chip Pellet Machine

10TPH Biomass Pellet Production Line Eucalyptus Pine Birch Wood Chip Pellet Machine

10TPH Biomass Pellet Production Line

Biomass Pellet Production Line Eucalyptus

Birch Wood Chip Pellet Machine

Herkunftsort:

China

Markenname:

Zhongdebao

Zertifizierung:

CE BV

Modellnummer:

PL-1-10TPH

Treten Sie mit uns in Verbindung
Fordern Sie ein Zitat
Produkt-Details
Anwendung:
Chips, Keks, Imbiss, Hauch-Imbiss-/Mais-Imbiss-/Verdrängungs-Imbiss-Prozesslinie, die Imbisskugel br
Kundendienst erbracht:
Ingenieure verfügbar für Service-Maschinerie übersee, Feldinstallation, beauftragend und bilden aus,
Spannung:
Phase 380V/50HZ, 380v, 50hz, 380V/50HZ/dreiphasig, 220V/50HZ/Single oder Änderung als Rquired
Energie (W):
45KW, 256kw, 195kw, 80KW, 22/30/55/75/90kw
Garantie:
1-jährig, ein Jahr, 12 MONATE
Gewicht:
500kg, 6000kg, 1200kg, 2-10TON, 2000
Maß (L*W*H):
30000*5000*3500mm, 3.2*1.1*2m, 21*2*3m, 3.5x1.05x1.96m, gemäß der Kapazität
Bedingung:
neu
Kapazität:
1000kg/h zu 10tons /h
Material:
Legierter Stahl des Kohlenstoffstahls
Motor:
Simens, chinesischer Motor oder Simense
Produkt-Name:
hölzerne Kugelfertigungsstraße der Biomasse
Farbe:
blaues weißes Grünes jede mögliche Farbe kann besonders angefertigt werden
Art:
hölzerne Kugel der Biomasse, Linie produzierend
Rohstoff:
Holzspäne Eukalyptuskiefernbirkenpappel Reishülsen, Erdnusshülsen, Melonensamenhülsen, Bambusschnitz
Hauptmotor:
22kw 30kw 37kw 55kw
Ertrag:
300kg/h 500kg/h 800kg/h 1000kg/h 1.5ton/h 1.8-2tons/h 2.5-3tons/h
Jahr:
2023
Zahlungs-u. Verschiffen-Ausdrücke
Min Bestellmenge
1
Preis
price negotiable
Verpackung Informationen
Holzetuipaket und direkt geladen im Behälter
Lieferzeit
5-8 Werktage
Zahlungsbedingungen
L/C, T/T, Western Union
Versorgungsmaterial-Fähigkeit
100sets pro Monat
Produkt-Beschreibung

1TPH-10TPH Biomass Wood Chips Eucalyptus Pine Birch Poplar Pellet Production Line





(Chipping---Grinding---Drying---Pelleting---Cooling&Screening---Packing process).

The wood pellet line machines can make a variety of biomass raw materials into pellets. Its diameter is generally 6/8/10/12mm, and its water content is 10-15%. Biomass pellets have a wide range of sources, and common raw materials are:

raw mateiral : wood logs , sawdust planks , straws , other biomass wastes Etc.
Forestry Waste: such as waste wood, waste branches, sawdust, etc.
Agricultural Waste: such as crop straws, rice husks, peanut husks, bagasse, palm kernel husks, etc.
Construction Waste: such as waste paper, wooden frames, wooden templates, etc.

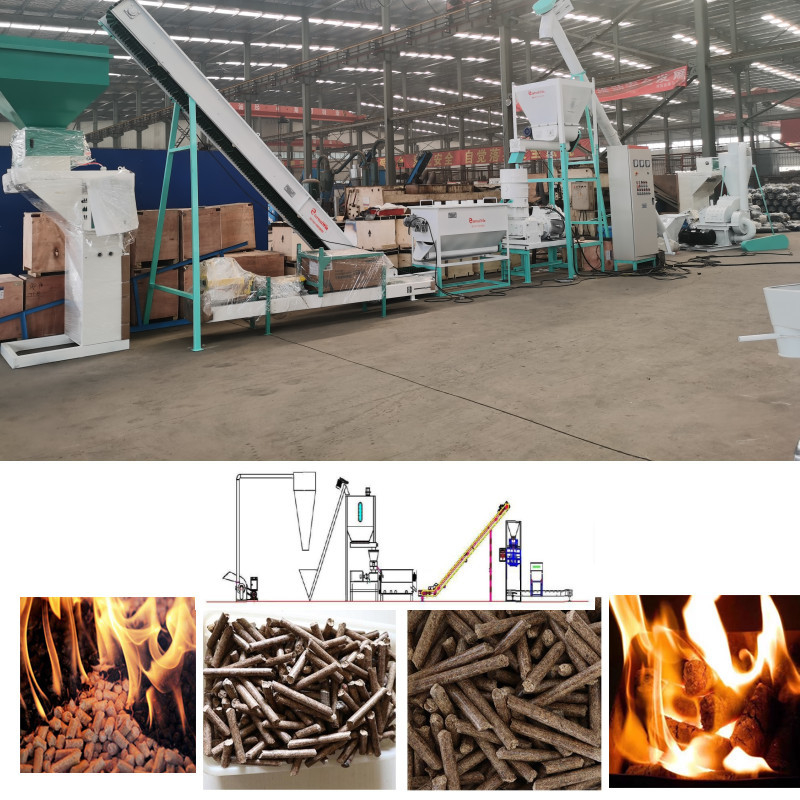

10TPH Biomass Pellet Production Line Eucalyptus Pine Birch Wood Chip Pellet Machine 0

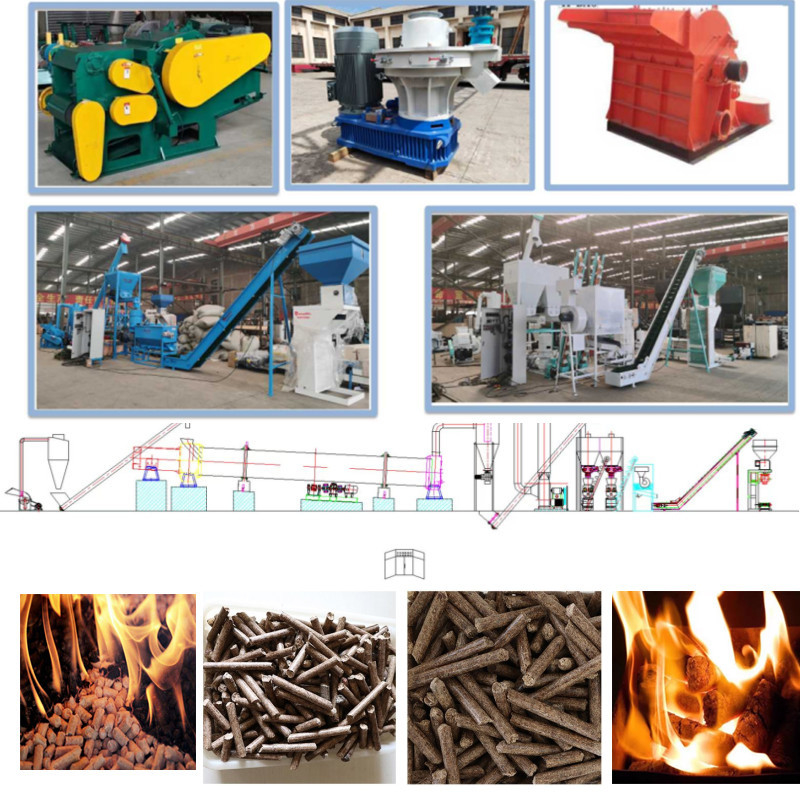

Main machines used : Wood pellet mills , Drum type wood chipper , Hammer mill , Rotatry drum type drying machine, counterlflow cooler , Automatic packing system .
10TPH Biomass Pellet Production Line Eucalyptus Pine Birch Wood Chip Pellet Machine 1
10TPH Biomass Pellet Production Line Eucalyptus Pine Birch Wood Chip Pellet Machine 2
10TPH Biomass Pellet Production Line Eucalyptus Pine Birch Wood Chip Pellet Machine 3
10TPH Biomass Pellet Production Line Eucalyptus Pine Birch Wood Chip Pellet Machine 4
10TPH Biomass Pellet Production Line Eucalyptus Pine Birch Wood Chip Pellet Machine 5


10TPH Biomass Pellet Production Line Eucalyptus Pine Birch Wood Chip Pellet Machine 6

Application of Biomass pellets :
Biomass pellets are made by recycling waste and are a new type of environmentally friendly fuel , widely used in residential heating equipment , power plants , boiler plants . etc. It has the characteristics of large heat generation , low ash content , low enviromental pollution, and recyclablility .
Commly used in Fireplace , biomass power plant , boiler fuel , Household biomass stove .
10TPH Biomass Pellet Production Line Eucalyptus Pine Birch Wood Chip Pellet Machine 7

The advantages of Zhongdebao wood granulator machine's ring die ?

The ring die is the core coponent of the pellet machine ,and the quality of the ring die affects the life of the pellet machine .
  • The ring die of the Zhongdebao biomass pellet machine is made of 42CrMo , which is more wear-resistant and durable than ordineary alloy steel or carbon steel ring die .
  • The special surface carburizing treatment increases the surface hardness of the ring die and significantly improves the service life .
  • Compressed step release hole is adopted to ensure that the material enters teh die hole smoothly .
  • The high hole opening rate of ring die to ensure the continuous high output of the plellet machine .





Model
VR450
VR560
VR600
VR600A
VR700A
Power(kw)
55+0.37
90+1.5+0.37
110+2.2+0.37+0.65
132+2.2+0.37+0.65
160+2.2+0.37+0.65
Voltage
380v/220v 50hz 60hz customized
Rotation speed
1450r/min
Pellet size
4-12mm
Pelletize temperature
40-80 ℃
raw material moisture
15-25%
Weight
2.9T
5.6T
6.5T
7T
8T
Size
2160*1000*1850
2300*1250*2000
3100*1300*2100
2200*1200*1750
2460*1400*2000
Ring die inner diameter
450
560
600
600
700
Capacity
0.8-1T/H
1.2-1.5T/H
1.8-2T/H
2-2.5T/H
2.5-3T/H





For the pellet mold/die the diameter generally will be 6mm or 8mm .



The finished sample pellet for your reference :

10TPH Biomass Pellet Production Line Eucalyptus Pine Birch Wood Chip Pellet Machine 8

10TPH Biomass Pellet Production Line Eucalyptus Pine Birch Wood Chip Pellet Machine 9

10TPH Biomass Pellet Production Line Eucalyptus Pine Birch Wood Chip Pellet Machine 10
